HOTRONIX - DUAL AIR FUSION W/ PROPLACE IQ [XRF2PP 120]

HOTRONIX - DUAL AIR FUSION W/ PROPLACE IQ [XRF2PP 120]

$ 10,395.00 - $ 10,395.00
$ 10,395.00
$ 10,395.00 - $ 10,395.00
$ 10,395.00
SKU XRF2PP 120
Size: 120 v; 15 amps; 1800 w
Finance Available
  • The Dual Air Fusion IQ® Heat Press is built for the ultimate heat printing efficiency. This heat transfer machine provides the functionality of two Air Fusion IQ® heat presses with smooth, effortless operation controlled by the push of a button and tap of a foot pedal. The upper platen moves between heat printing stations, allowing operators to prepare garments on one station while the other is being pressed.

    Dual Air Fusion ProPlace IQ™ - Available Now!

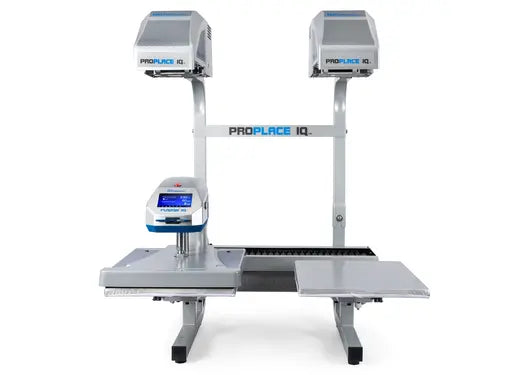

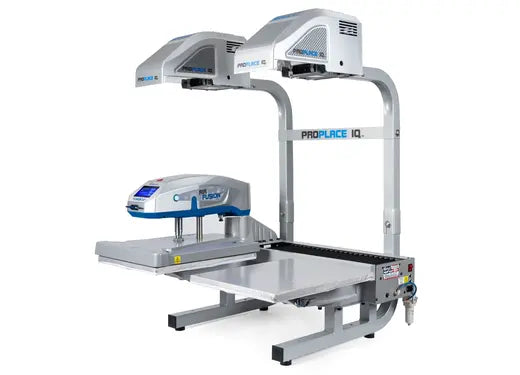

    Experience unprecedented precision, speed, and efficiency with Hotronix® Dual Air Fusion ProPlace IQ™. Utilizing a patented projection alignment system, effortlessly upload your artwork to the Hotronix® Cloud and witness your design projected onto the lower platen, simplifying alignment, and minimizing misprints for speedier production.

     Learn More About the Hotronix® ProPlace IQ™
    Innovation meets application with IQ® Heat Presses. Register your Dual Air Fusion IQ® Heat Press with Hotronix® to access the Online Portal where you can manage users, generate usage reports, and troubleshoot technical issues.

    A $200 crating fee will be applied to this heat press

  • Features

    • Dual Quick Change 16" x 20" platens.
    • Auto Adjust Pressure™ with four different pressure and time settings that auto-adjust pressure for all recipes.
    • Die pressure cast, corrosion-free base and top assemblies.
    • Center-driven rodless transmission ensures smooth, quiet operation.
    • Operates in full-auto, semi-auto, or manual modes.
    • Threadability™ allows easy decorating of front, back, and sides of garments.
  • Program and store frequently used applications.
  • 120 PSI for heavy pressure application.
  • No operator fatigue.
  • Optional smaller interchangeable platens.
  • Proudly made in the USA.
  • Premier warranty.
  • Electrical Options:
    120 v; 15 amps; 1800 w
    240 v; 15 amps; 3500 w
  • Must have designated circuit breaker

    Warranty

    • Lifetime Warranty on Heating Element
    • 5 yr on Framework
    • 2 yr on Circuit board
    • 1 yr parts/labor
  • Weight: 443 lbs
  • Dimensions: Dual Air Fusion IQ® 38" x 38" x 26""

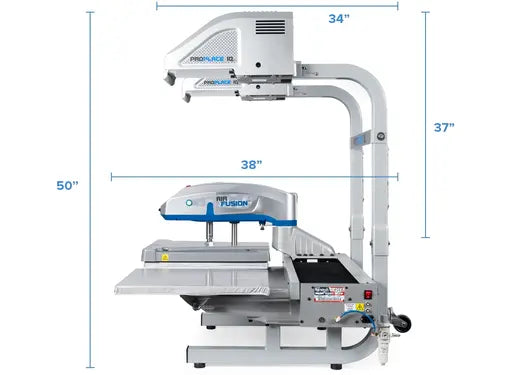

    ProPlace IQ™ 38” x 38” x 50” (assembled)

*Requires air compressor (not included) with minimum:
1 horsepower and 8 gallon hold tank, 120 PSI. Uses 3.8 CFM.

Recommended table size of 24 x 36 x 28" with 30" height.

Please contact Hotronix for replacement parts and technical support.
